by Millard Manufacturing Corp

(800) 662-4263   ●  sales@optigripwalksurface.com




K style OptiGrip is designed for the sanitary environment.  The straight leg design reduces the risk of product buildup and simplifies clean up.  The K style is deburred on the edges and has radiused corners for safe handling during lift-out wash down applications. See below for a "features" photo and an engineering drawing.

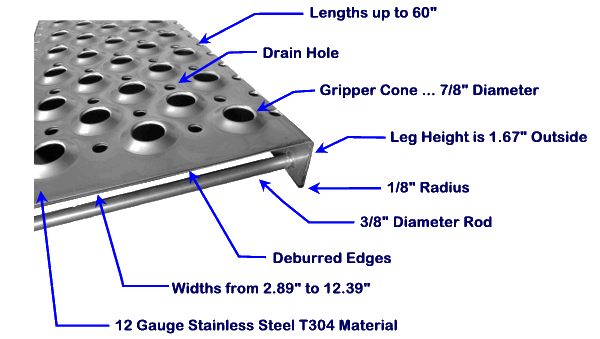

FEATURES



DRAWING

The drawing below can be viewed and printed using the free PDF viewer from Adobe.  Click on the drawing
below to load it into the viewer in a new window.  OptiGrip K-Style PDF Drawing



Cad Drawing showing K Style OptiGrip
